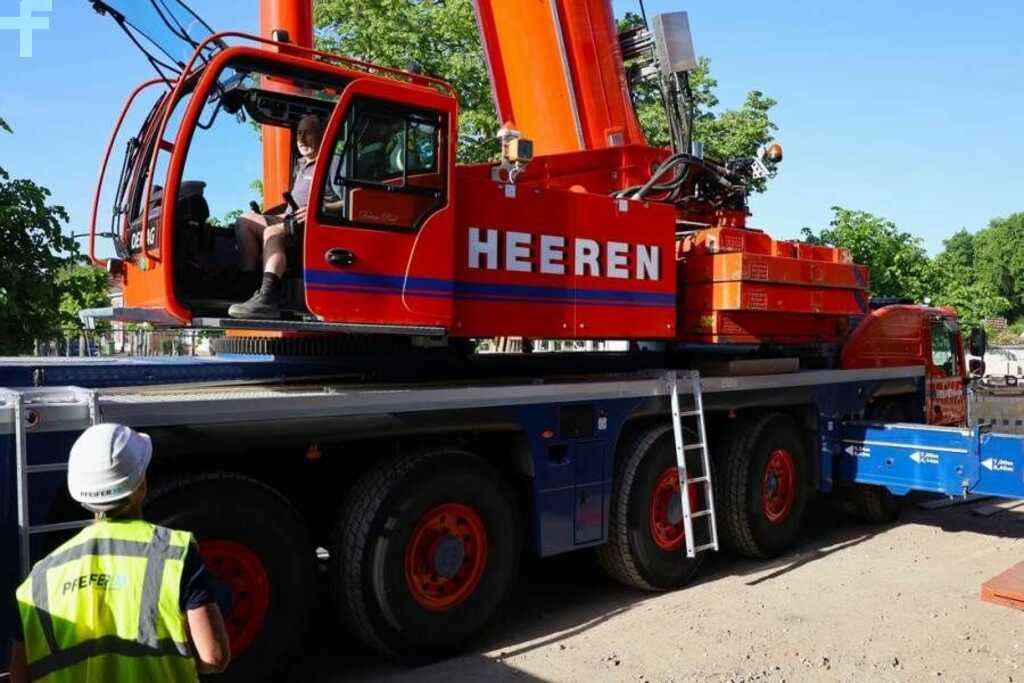

Demag Overige AC220-5 Dutch Registration, 10x6x10, 220t Capacity
Last updated: 15-11-2025
Forklift ID: 25052809585996566400/270841
Machine Data
Merk Demag
Subcategorie Overige
Type AC220-5 Dutch Registration, 10x6x10, 220t Capacity
Bouwjaar n/a
Bedrijfsuren 5,422
Max. weight allowed 48.000 kg
Verdere informatie
plaats Groenlo
Opmerking klant
== Více podrobnosti (CZ) ==
Pohon: Kolo
Zvedací kapacita: 220.000 kg
Sériové číslo: 82609
== Weitere Informationen (DE) ==
Antrieb: Rad
Hubkapazität: 220.000 kg
Seriennummer: 82609
Zustand der Bereifung vorne: 90
Zustand der Bereifung hinten: 90
Transportabmessungen (L x B x H): 15.3x3x4
Wenden Sie sich an PFEIFER GROUP, um weitere Informationen zu erhalten.
== Flere oplysninger (DK) ==
Drivanordning: Hjul
Løftekapacitet: 220.000 kg
Serienummer: 82609
Kontakt PFEIFER GROUP for yderligere oplysninger
== More details (EN) ==
Drivetrain
Drive: Wheel
Functional
Lifting capacity: 220.000 kg
Identification
Serial number: 82609
Other information
Front tyres / undercarriage remaining: 90
Rear tyres remaining : 90
Tyre brand: -
Carrier engine: -
Upper engine: -
Counterweight: 70200
Transport dimensions (LxWxH): 15.3x3x4
Additional information
Please contact PFEIFER GROUP for more information
== Información adicional (ES) ==
Propulsión: Rueda
Capacidad de elevación: 220.000 kg
Número de serie: 82609
Restante de neumáticos delanteros: 90
Restante de neumáticos traseros: 90
Dimensiones de transporte (LaxAnxAl): 15.3x3x4
Póngase en contacto con PFEIFER GROUP para obtener más información.
== Informations supplémentaires (FR) ==
Commande: Roue
Capacité de levage: 220.000 kg
Numéro de série: 82609
État neuf pneus avant: 90
État neuf pneus arrière: 90
Dimensions du volume de transport (L x l x H): 15.3x3x4
Veuillez contacter PFEIFER GROUP pour plus d'informations
== Részletes információk (HU) ==
Hajtómű: Kerék
Emelési kapacitás: 220.000 kg
Sorszám: 82609
További információért kérjük, vegye fel a kapcsolatot PFEIFER GROUP-vel
== Ulteriori informazioni (IT) ==
Guida: Ruota
Capacità di sollevamento: 220.000 kg
Numero di serie: 82609
== Overige details (NL) ==
This Demag AC220-5 can be sold with warranty. Inform about our conditions!
The Sterk Contra weight trailer is included, along with a mover equipped with a remote control (See Pictures)
Manufacturer: Demag
Typ: AC220-5
Manufacturer Year: 2020
Fuel: Diesel

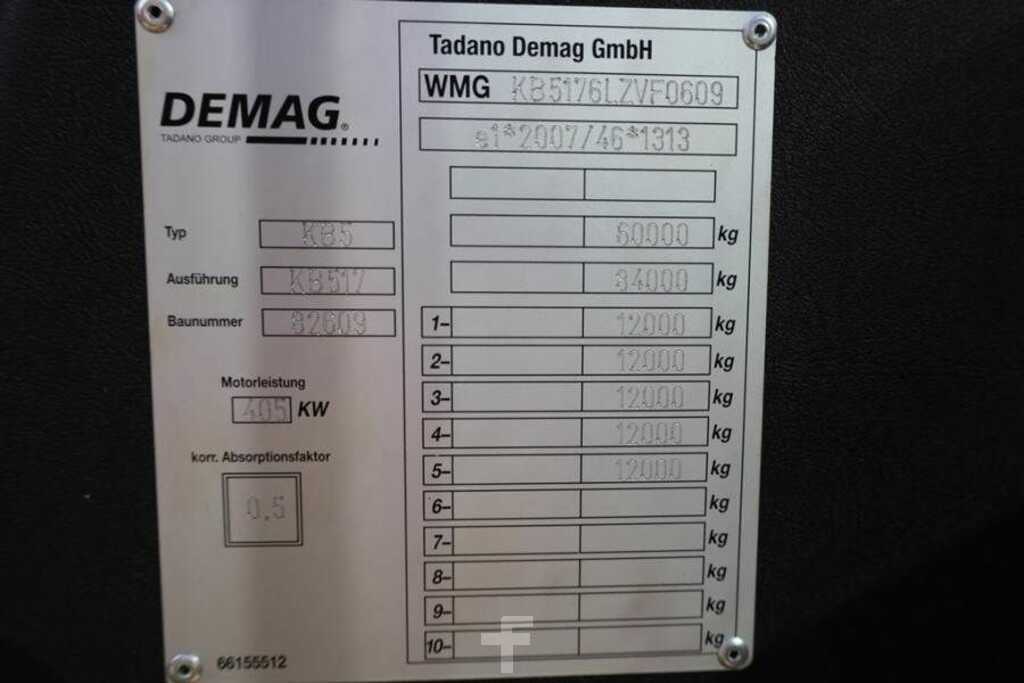

Chassis number: WMGKB5176LZVF0609
Serial number: 82609

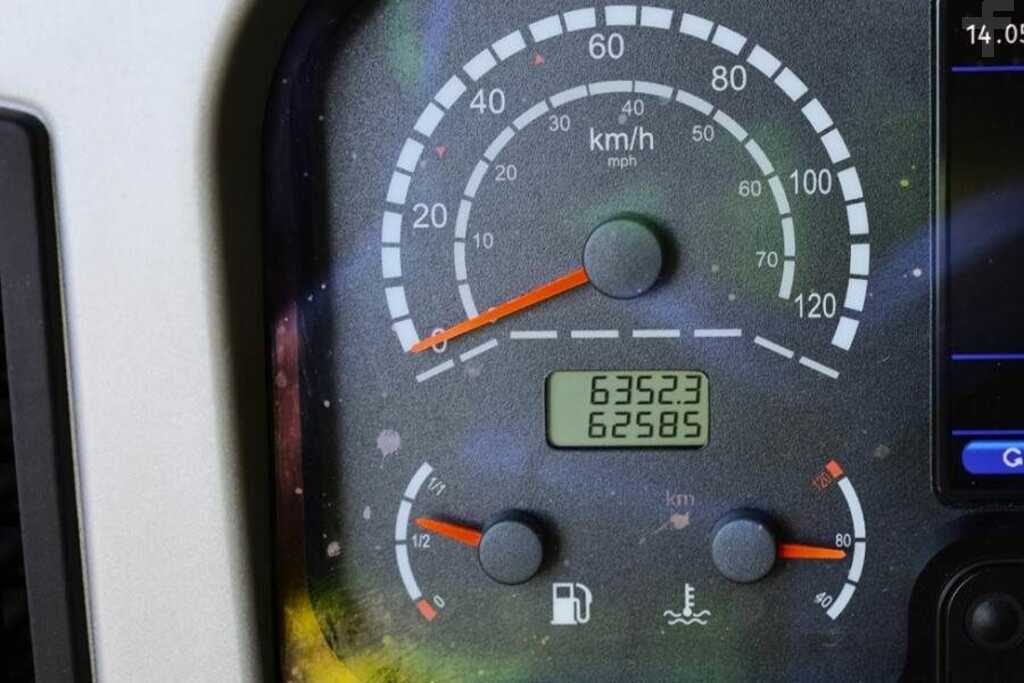

KM: 62.585
Working Hours: 5.422 h
Max. lifting capacity: 220 tons

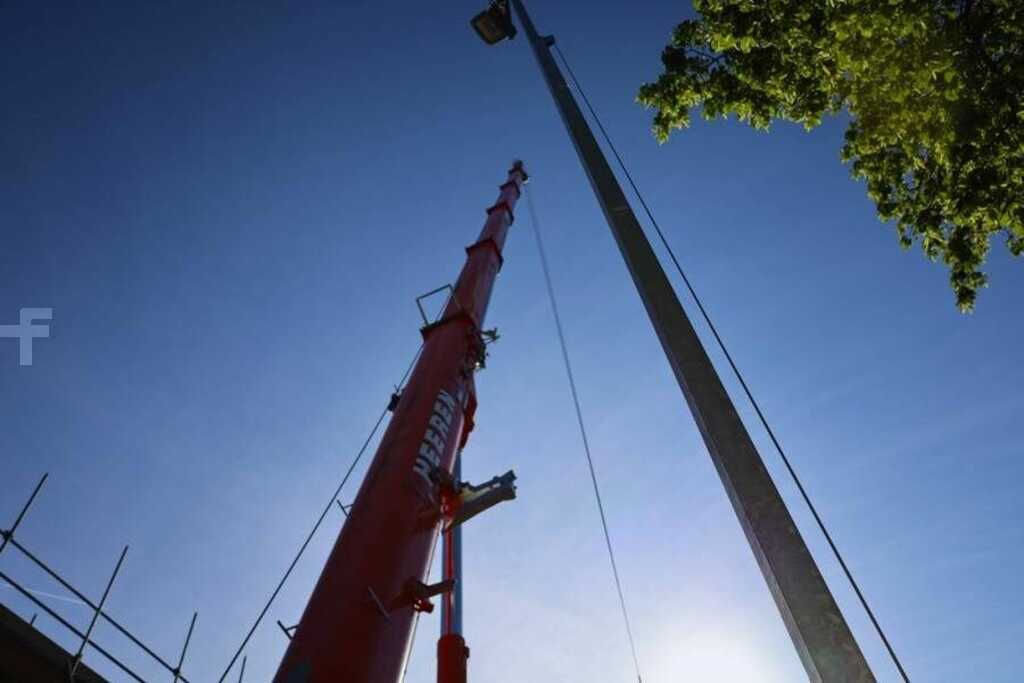

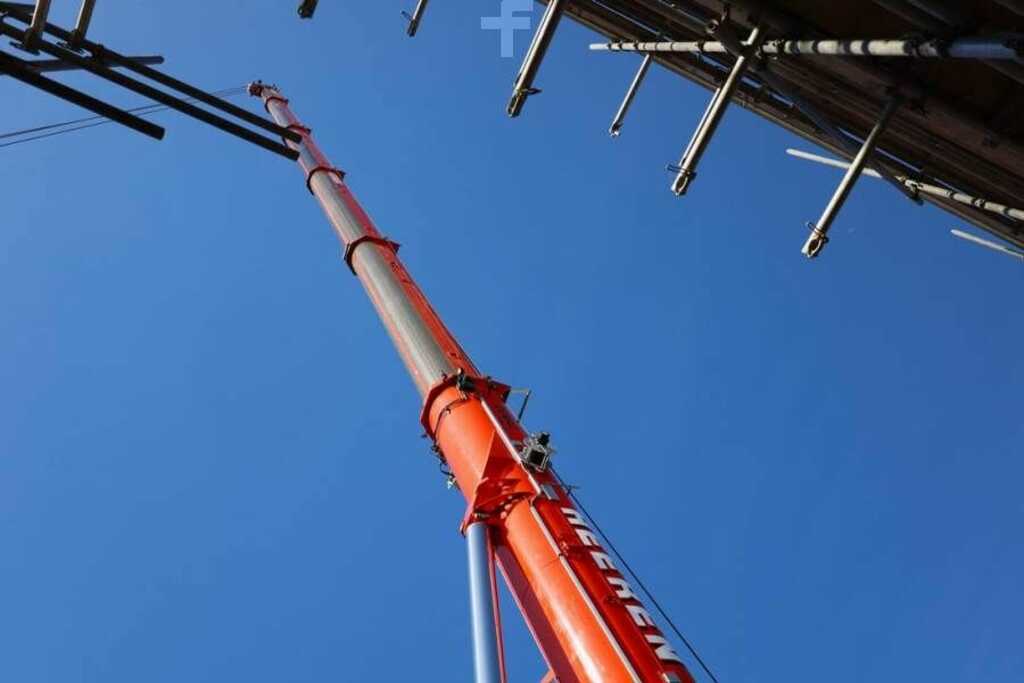

Main boom: 12.8 m – 78 m
Engine:
Scania DC13, Euromot 4 / Tier 4F compliant
Power: 368 kW (500 HP) @ 2100 rpm
Torque: 2373 Nm @ 1300 rpm
Drive Configuration:
10x6x10
Transmission:
ZF AS-Tronic 12-speed automated gearbox with 2 reverse gears
Hydraulic retarder & off-road gear
Dimensions
Overall Length (with boom): Approx. 15.33 m
Overall Width: 3.00 m
Overall Height (transport position): 4.00 m
Wheelbase: Approx. 3 x 1.65 m + 2.10 m
Turning Radius (inner): Approx. 8.4 m
Max. Outrigger Base: 8.4 m x 8.9 m
Outrigger Positions: 2.75 m / 5.54 m / 7.0 m / 8.4 m
Stability & Smart Control

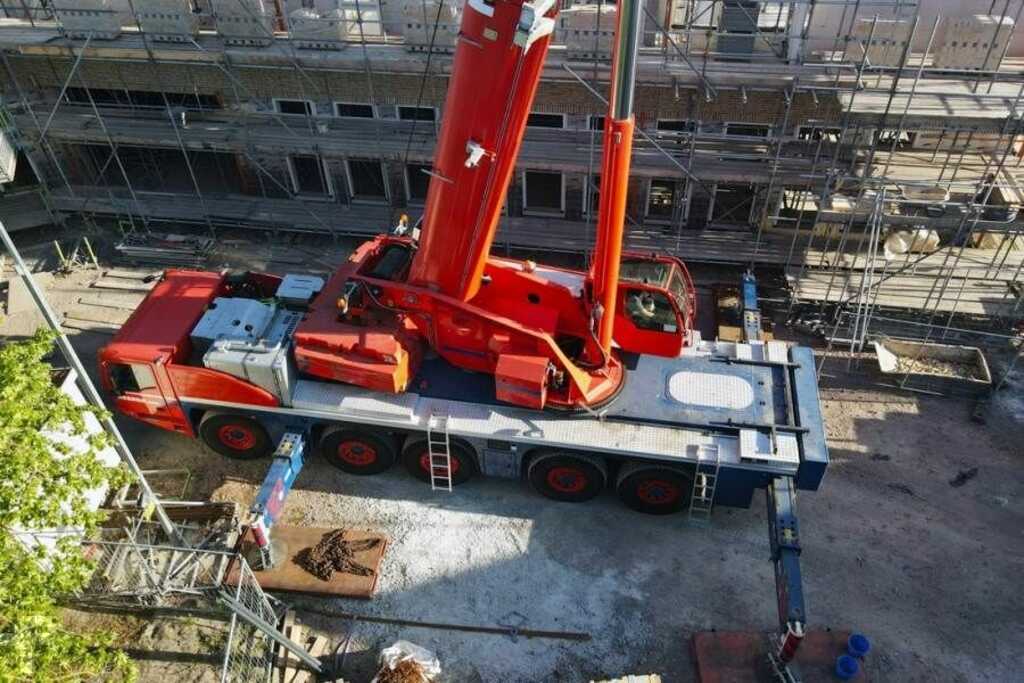

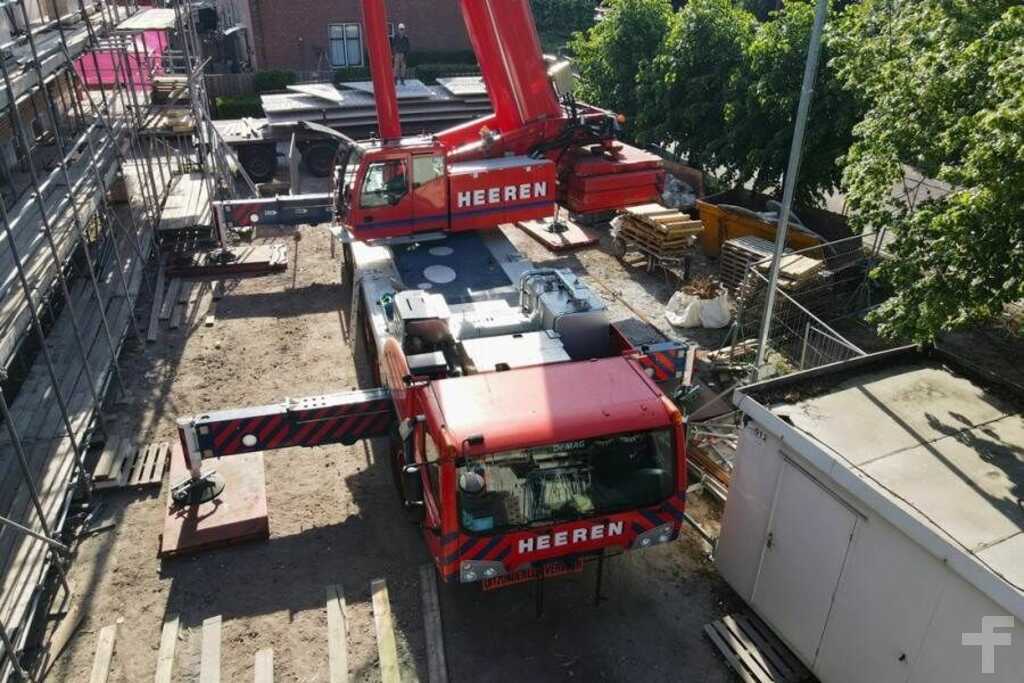

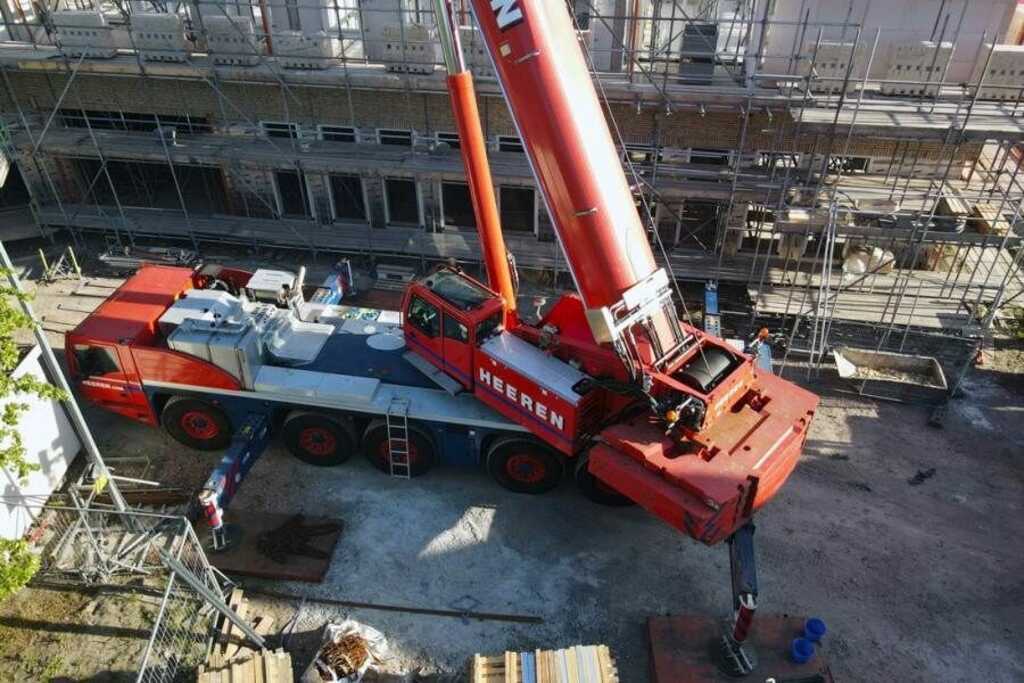

Outriggers: 4-point H-type fully hydraulic outriggers
Base widths: 2.75 m, 5.54 m, 7.0 m, and 8.4 m
IC-1 Plus Control System:
Enables asymmetrical outrigger positioning
Real-time load chart adaptation
Outrigger Monitoring: Horizontal beam stroke monitored with warning system.
Jib Extensions:
21 m folding swing-away jib with manual offset angles (20°/40°)
Lubrication:
Central lubrication system for both carrier and superstructure (e.g., luffing cylinders, slewing ring)
Infotainment:
Radios in both cabs with CD, USB, Aux-In and Bluetooth
Heating & Cooling:
Carrier Cab Heating: 12 kW warm water
Superstructure Heating: 5 kW independent
Carrier Air Conditioning: 7 kW
Superstructure A/C: 5 kW
Superstructure Cab
Infinitely tiltable up to 16°, sliding windows, front window folds out, extendable pedestals.
Counterweight System
Standard Counterweight: 51.6 tonnes
Maximum Counterweight: 70.2 tonnes
Automatic Rigging System: For quick and safe counterweight setup.
Fall Protection: Counterweight fall arrest system included (compliant with NL regulations).
Dutch vehicle registration
Crane Logbook
All necessary documents and papers.
CE (Declaration of Conformity).
More detailed pictures / product movie on our website.
pfeifermachinery.com
Above specifications are subject to change without prior notice and subject to errors.
